STDA-7000XLT USA Made 7000lb 4 Post Lift
MODEL STDA-7000XLT made in USA

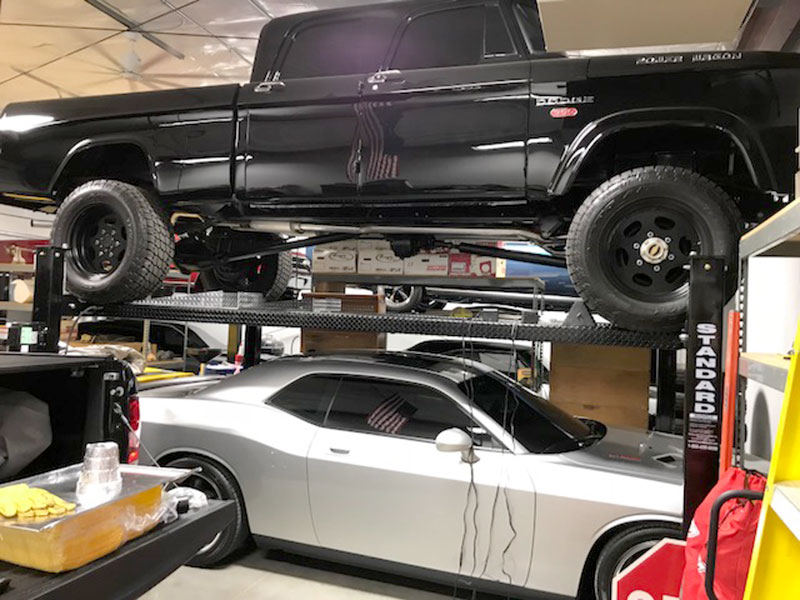

USA made quality, the STD-7000XLT with 10 locking positions and a drive-thru clearance of 98″ is the lift for most automobile enthusiasts. Not only is this lift great for storage but with its fantastic finish the STD-7000XLT is a showcase for your automobile. The powerful 110v power unit and single point release make operation simple. Add the optional caster kit and you can easily move your lift when needed.
Download Spec Sheet
Features:
- Produced in the USA
- Made with North American Steel
- Powder coat finish
- SPX power unit
- 7,000 lbs. lift capacity
- 19″ wide diamond tread runways formed from 3/16″ steel
- 180″ Extra Long Runways
- 98″ Extra Wide Drive Thru Clearance
- 82-1/2″ Overall Lift Height
- 14,000lb. capacity aircraft quality cables
- 3″ diameter hydraulic cylinder located under the runway
- 12 locking positions
- Single point safety release
- Operates on 110v power
Specs:
| MODEL | STDA-7000XLT | |
| Capacity | 7,000 lbs | |
| Max. Lift Height Top of Runway | 81-1/2″ | |
| Max. Lift Height Bottom of Runway | 77-1/2″ | |
| Overall Length Including Ramps | 221-1/2″ | |
| Column Height | 93″ | |
| Overall Width | 111″ | |
| Drive-Thru Width | 98-1/2″ | |
| Runway Width | 19″ | |
| Width Between Runways | 38″ | |
| Runway Length | 180″ | |
| Drive On Ramp Length | 36″ | |
| Latch Style | Manual | |
| Standard Motor | 110V* |
* 3 Drip trays are made in China
* 220V available on request
* Specifications Subject to Change Without Notice
Additional information
| Weight | 1600 lbs |
|---|---|
| Dimensions | 165 × 22 × 28 in |
| Model | STDA-7000ST |
