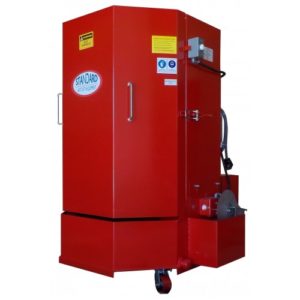

SWE-2036 SPRAY WASH CABINET

SPRAY WASH CABINET

MODEL: SWE-2036

The SWE series spray wash cabinets are the parts cleaning equipment for manufacturing and maintenance work cells, or other industrial environments.

This equipment sprays hi-pressure hot water to wash parts and clean grease, oil, grime, machine colorant, dirt, stamping oil, drawing compound and several other manufacturing soils from pans & components.

Features

  • 24V AC safety control panel power
  • Internal dimensions: 36” turntable; 54” job height; 2,000 lbs. max weight capacity
  • Low water level sensor and alarm protects heating elements against low water levels
  • Stainless steel oil skimmer allows longer use of solution whilst changing less frequently
  • 7-day timer included to eliminate early morning starts for you and your staff
  • Gear drive that won’t rob you of water pressure like water driven models can tend to do
  • Slow 4-5 rpm gives a superior, more thorough cleaning performance over water driven models
  • 4.0hp stainless steel pump that pumps a solid 83 gallons per min
  • 85 gallons insulated solution tank provides an ample supply of water for extra heavy-duty parts
  • 2 x 4.5 kW heating elements heating solution up to a maximum of 175F in approx. 2 hours
  • Optional small parts baskets allow for the containment of small parts during washing
  • Full opening gasket free door as gaskets will often perish with long term exposure to steam
  • Removable tank filter screen allows for quick and easy cleaning
  • Optional biodegradable, non-caustic, heavy duty powdered detergent. ​
  • 3 phase
  • External dimensions: H – 78” x W – 46” x L – 53”

Specifications

Model SWE-2036
Inside Clearance Height 54Inches/1370mm
Inside Clearance Width 39Inches/990mm
Turntable Diameter 36Inches/914mm
Overall Height 78inches/1981mm
Load Capacity 2,000lbs/910KG
Washing Cycle Timer 0-60 Minute
Oil Skimmer Cycle Timer 0-15 Minute
Pump Horsepower 4.0HP
Pump Outlet 83GPM  @ 44 PSI
Heater Element 2 x 4.5 KW
Water Temperature 135º-175ºF/ 59º-89ºC
Solution Capacity 85Ga/320L
Power Requirement* 220V /3 phase/ 60Hz
Number of Nozzle 22
Turntable Jog Switch Standard
Turntable Sprocket Driven Standard
Water Level Switch Standard
Low Water Shut-off Switch Standard
Stainless Steel Oil Skimmer Standard
Small Parts Basket Standard
Removable Parts Tree Standard

*200V, 3 PHASE, 60HZ; 220V, 3 PHASE, 60HZ; 240V, 3 PHASE, 60HZ; 480V, 3 PHASE, 60 HZ; 600V, 3 PHASE, 60HZ; 220V, 3 PHASE, 50HZ; 240V, 3 PHASE, 50HZ; 380V, 3 PHASE, 50HZ; 400V, 3 PHASE, 50HZ; 4150V, 3 PHASE, 50HZ Available
