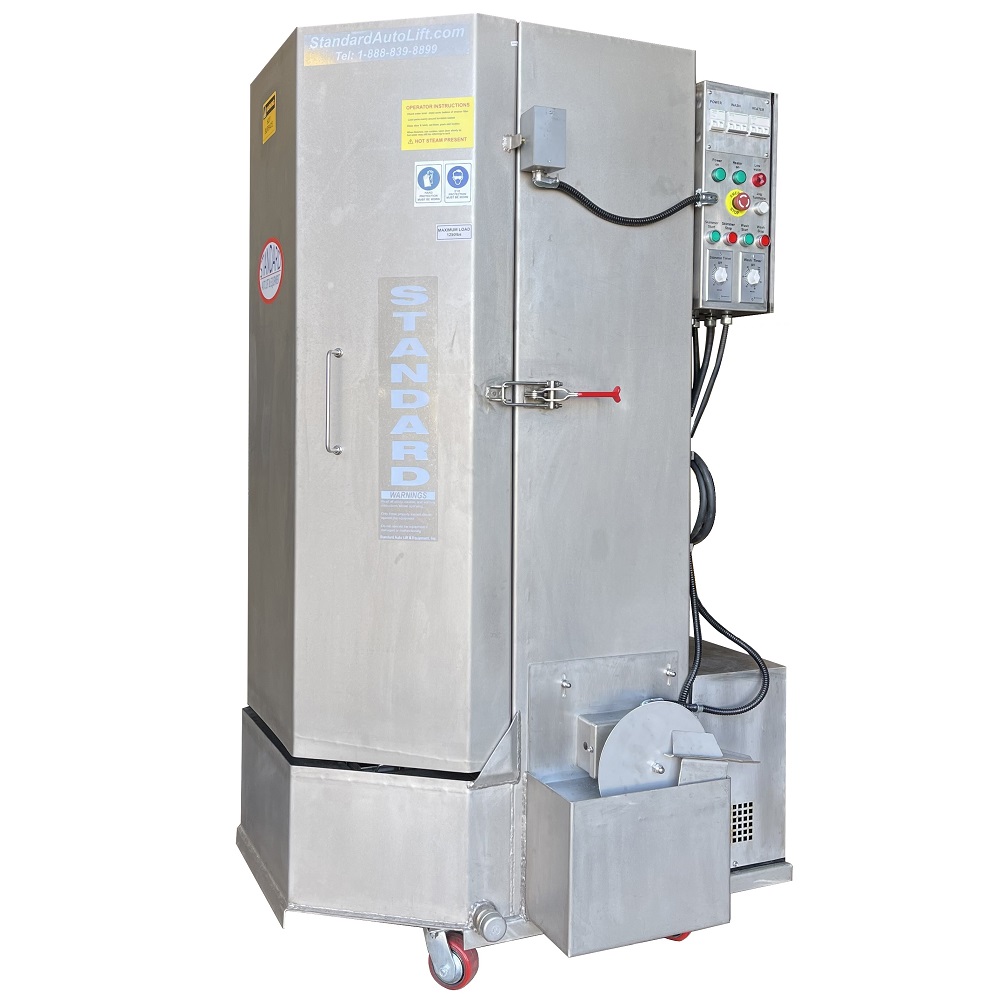

STAINLESS STEEL SPRAY WASH CABINET STW-750S

STAINLESS STEEL SPRAY WASH CABINET

SINGLE PHASE, 220VAC, 60HZ

MODEL STW-750S

3.0 HP Stainless Steel Water Pump.

The all-stainless steel design* greatly improves the rust and corrosion resistance of the machine, making the service life of the spray wash cabinet longer.



  • 24V AC safety control panel power
  • Internal dimensions: 30” turntable; 54” job height; 1,250 lbs. max weight capacity
  • Low water level alarm and automatic Shut-off protect heating elements and water pump against low water levels
  • Stainless steel oil skimmer allows longer use of solution whilst changing less frequently
  • Sprocket drive that won’t rob you of water pressure like water driven models can tend to do
  • Slow 4-5 rpm gives a superior, more thorough cleaning performance over water driven models
  • 3.0hp stainless steel pump that pumps a solid 68 gallons per min
  • 53 gallons insulated solution tank provides an ample supply of water for extra heavy-duty parts
  • 2 x 3.5 kW dual-heaters heating solution up to a maximum of 194F (90C) in approx. 2 hours
  • Full opening gasket free door as gaskets will often perish with long term exposure to steam
  • Stainless Steel Removable tank fine filter screen allows for quick and easy cleaning and protects the water pump
  • Optional biodegradable, non-caustic, heavy duty powdered detergent. ​
  • Power requirement: 220V AC, Single phase, 60Hz, 50Amp

Warranty: One (1) year parts warranty, five (5) years cabinet warranty

Shipping:

Standard LTL shipping to commercial address in 48 continental states.

$75.00 ea. additional charge will be applied on home based business, limited access, farm delivery, and liftgate service.

Local pickup is not available now

Please see detail information at shipping option.

Features

  • Simple Operation
  • 0-60 Minute Automatic Timer
  • 0-15 Minute Oil Skimmer
  • Turntable Jog Switch
  • Sprocket Drive Turntable
  • Stainless Steel turntable bearings
  • Stainless Steel Spray Nozzles
  • Stainless Steel Removable Fine Filter
  • Stainless Steel Removable Parts Basket
  • Stainless Steel Removable Parts Tree
  • Accommodates Engine Crane Loading
  • Gasket Free Door
  • Heavy Duty Polyurethane Casters
  • 3.0hp Stainless Steel Pump
  • 1,250 lb Capacity Heavy Duty Stainless steel Turntable
  • 2.75mm thickness SS304 stainless steel cabinet and door

    Specification

    Model STW-750S
    Overall Height 78″
    Inside Height 54″
    Inside Width 32″
    Turntable Diameter 30″
    Floor Space 44″ x 43″
    Load Capacity 1,250 lbs.
    Water Temperature 135º – 194º Degrees F

    57º – 90º Degrees C

    Pump Max Flow 68 GPM
    Electric Heater 3.5 KW x 2
    Cycle Timer 0-60 Minutes
    Tank Capacity 53 Gallons
    Stainless Steel Pump 3.0HP
    Turntable Jog Switch Standard
    Water Level Switch Standard
    Low Water Shut-off Switch Standard
    Removable Tank Screen Stainless steel
    Oil Skimmer Stainless steel
    Small Parts Basket Stainless steel
    Removable Parts Tree Stainless steel
    Handle & Latch Stainless steel
    Heavy Duty Casters Included
    Door & Cabinet 2.75mm thickness

    SS304 Stainless steel

    Power Requirement 220VAC, 3-Phase, 60HZ, 50Amp.



    *Specifications Subject to Change Without Notice

*all-stainless steel design excluding the steel pump cover and control panel box





Additional information

Weight 1000 lbs
Dimensions 46 × 46 × 83 in
